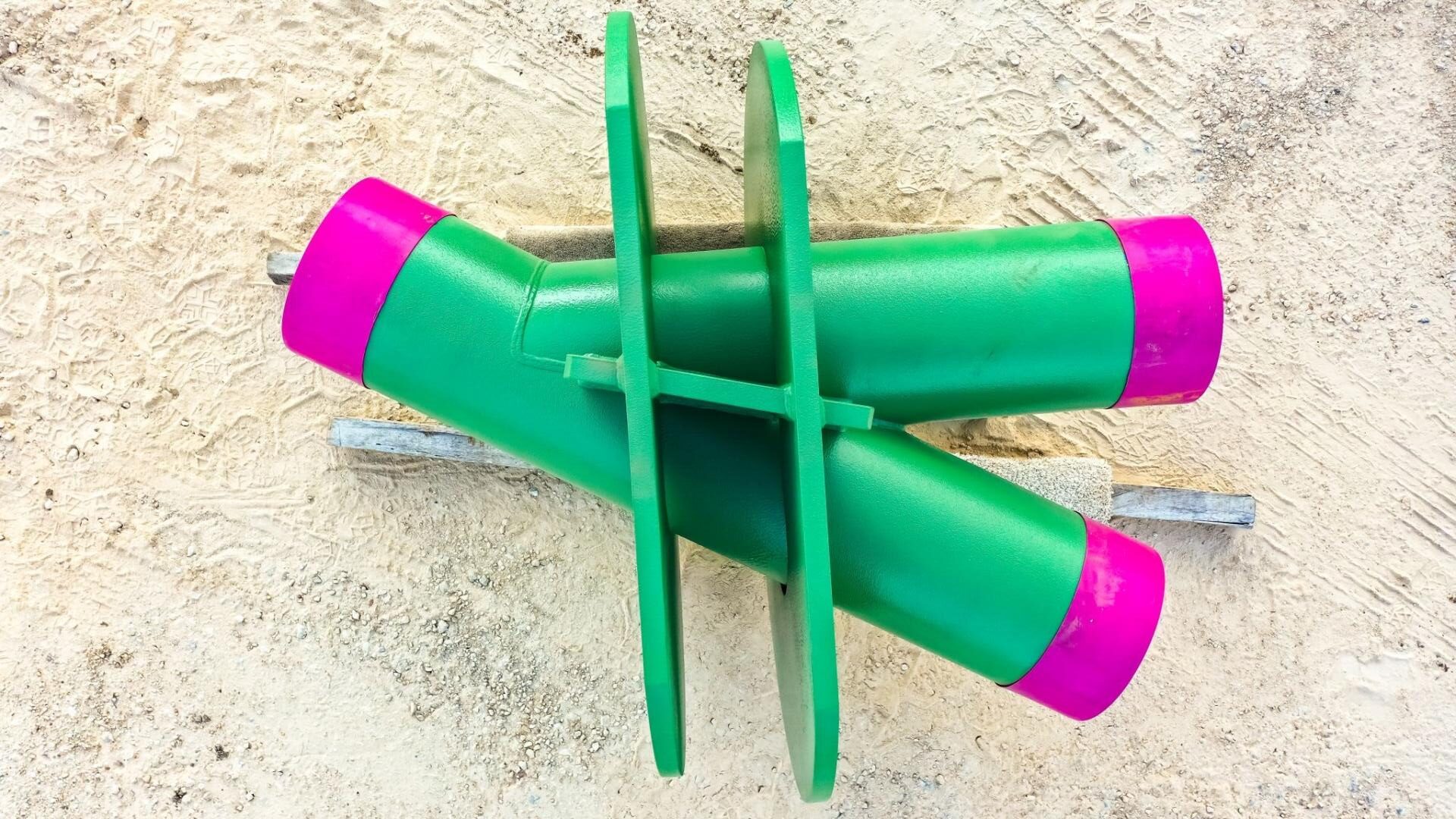

Piggable Wye Fitting

Evers & Sons provided pipe and steel fabrication for pipeline support structures. The project was executed as a fabrication-focused scope, with components fabricated in-house and Fusion Bonded Epoxy (FBE) coated prior to delivery to support long-term durability and installation requirements. The project scope included procurement of plate and piping materials, fabrication, welding, hydrotesting, and full QA/QC inspection in accordance with project specifications.

Scope of Work:

• Procurement of plate and piping materials
• Pipe fabrication and welding
• Fit-up and dimensional control
• NDE services
• Hydrotesting
• Surface preparation and coating
• QA/QC inspection and documentation
• Load-out and delivery

Fabrication Details:

• Plate Size:
  • 1½” 8′ x 10′ plate 4901lbs
• Pipe Size:
  • 16″ x .375″
• Materials:
  • Standard Wall Piping
  • Plate ASTM A572 Gr.50
• Connection Types:
  • Welded connections
  • Gusset plate connections
• Configuration:
  • 600# 30° Wye

Components Fabricated:

• Pipe spools
• Specialty piping assemblies
• Welded pipe segments
