LO-CAT® Trains and Balance of Plant Construction

Facilities

LOUISIANA

Project Overview

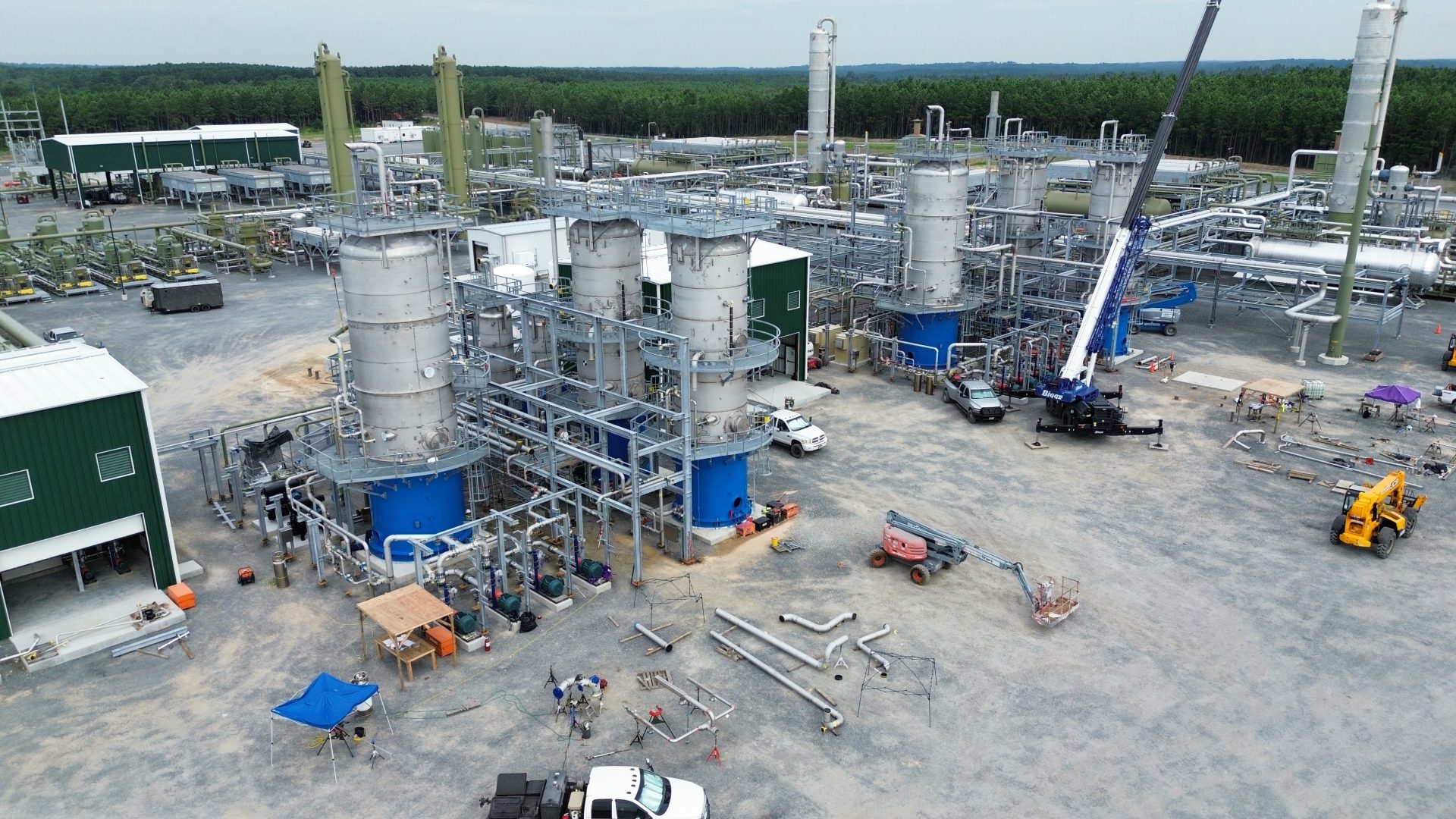

After successfully completing the original greenfield treating facility, Evers & Sons Inc. partnered again with the client to execute an expansion project supporting the operation of two (2) sulfur recovery units (LO-CAT trains) and a common chemical storage area. In addition to the LO-CAT system installation, Evers & Sons was responsible for all associated gas treating and ancillary equipment required for the facility’s continued growth and performance.

LO-CAT Train & Chemical Storage – Key Equipment (Per Train):

(1) Inlet Gas Knockout Pot
(2) Liquid Full Absorbers (LFA)
(2) LFA Recirculation Pumps (w/ Pump Seal Pots)
(1) Treated Gas Knockout Pot
(1) Treated Gas Knockout Pump (w/ Pump Seal Pot)
(1) Oxidizer
(2) Absorber Feed Pumps (w/ Pump Seal Pots)
(2) Overspray Pumps (w/ Pump Seal Pots)
(1) Solution Heater
(2) Process Air Blowers
(1) Pressure Filter
(1) Filter Box
(2) Filtrate Return Pumps (w/ Pump Seal Pots)
(3) Chemical Storage Tanks
(3) Chemical Pumps
(1) Biocide Tank with Pump
(1) Potassium Hydroxide (KOH) Storage Tank with Pump

Balance of Plant (BOP) Treating & Compression – Key Equipment:

(1) Acid Gas Screw Compressor Package (VRA 836M)
(1) Discharge Silencer
(1) Lube Oil Skid
(1) Lube Oil Cooler
(1) Seal Water Skid
(1) Acid Gas Aftercooler
(1) Injection Water Surge Vessel
(2) Injection Water Pumps
(2) CO2 Vent Scrubber Pumps
(2) Treated Water Pumps
(2) Glycol Heaters
(2) Glycol Circulation Pumps
(1) H2S Scavenger Injection System
(1) H2S Scavenger Tote
(2) H2S Scavenger Pumps

Scope of Work:

Concrete and structural installation for mechanical and electrical foundations
Pre-fabrication of pipe spools and structural steel packages
Field installation and pressure testing of all process piping
Equipment setting, including grouting of all rotating equipment
Scaffolding, coating, insulation, and jacketing

This project is designed to remove H₂S from acid gas produced in the amine regeneration still before venting to atmosphere. It also includes full gas treating and compression system installation as part of the overall balance-of-plant enhancements.
