Fire Tubes

Evers & Sons provided fabrication of fire tube assemblies designed for use in midstream heating applications. The project was executed as a fabrication-only delivery, with all components fabricated, tested, and coated in-house prior to delivery. The project scope included procurement of plate and pipe materials, fire tube fabrication, welding, NDE services, hydrotesting, painting, and full QA/QC inspections to meet project specifications.

Scope of Work:

• Procurement of plate and pipe materials
• Fire tube fabrication and welding
• NDE services
• Hydrotesting
• Surface preparation and painting
• QA/QC inspection and documentation
• Load-out and delivery

Fabrication Details:

• Firebox Configuration: 36’-0” long central flue firebox
• Cover Plate: 7’-0” radius cover plate
• Heat Capacity: 4.83 MMBTU
• Materials:
  • 1½” carbon steel plate
  • 30” pipe
  • 10” pipe
• Welding Methods: GMAW / FCAW

Components Fabricated:

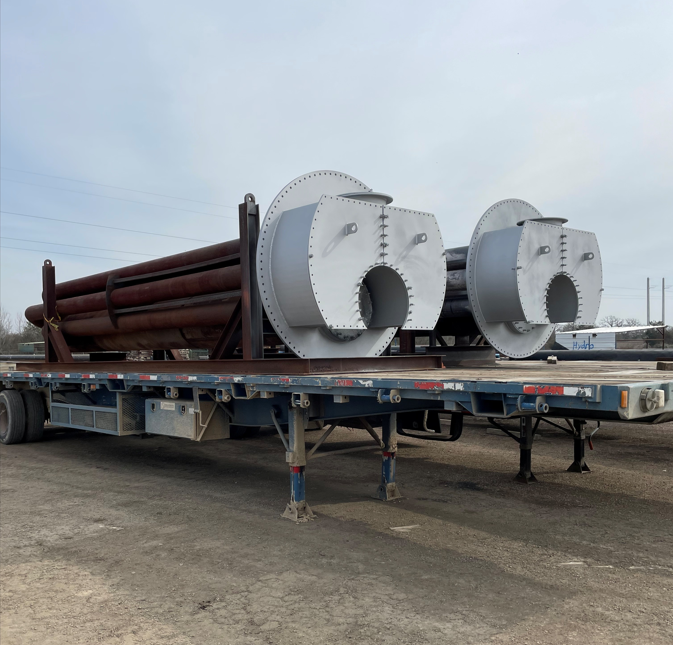

• Fire tube assemblies
• Central flue fireboxes
• Cover plates
• Welded pressure components
